Codeblocks

Breadcrumbs adds a new codeblock language, breadcrumbs. Currently, this can be used to render a tree of all paths in a given direction from the current note (similar to the Tree View), a Mermaid graph, or a Markmap mind map of the same data. The codeblocks use YAML, for example:

type: tree
fields: [down]
depth: [0, 3]
sort: basename asc

This would render a markdown list of all paths pointing down from the current note, up to a depth of 3, sorted by the basename of the notes, in ascending order.

Settings

Change under Settings > Views > Codeblocks:

• Note Display Options: Three toggles — Folder, Extension, and Alias — that control how note links are displayed across all codeblock results.

Available Fields

The following fields can be added to the codeblock to customise the output. Below the heading name for each field, you’ll see the possible values/options for that field, as well as it’s default value in (parentheses). Optional fields are marked with a ?. If you want to use the default value, then you don’t need to add that field to the codeblock.

type

type?: (tree) | mermaid | markmap

How to visualise the results.

• tree is similar to the Tree View
• mermaid renders the results in a Mermaid graph
• markmap renders the results as an interactive Markmap mind map

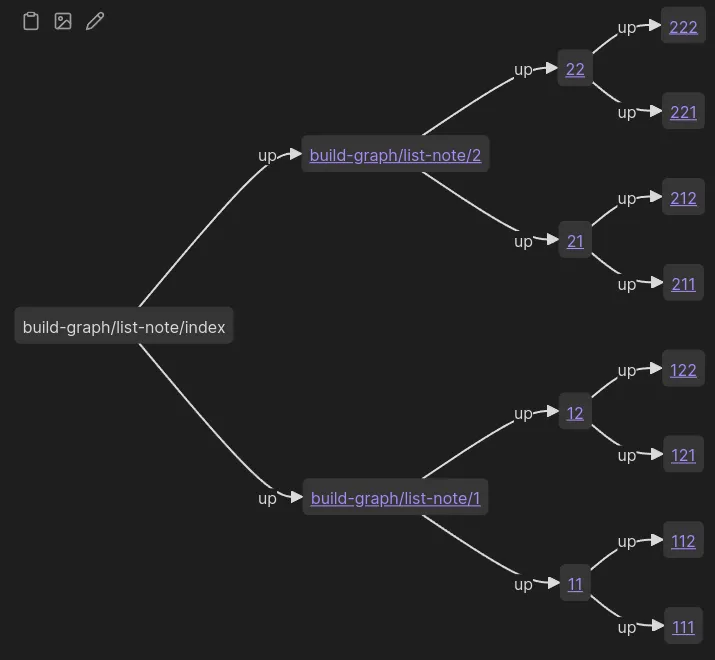

Mermaid Binary Tree

Markmap

start-note

start-note?: string

Override the starting note of the traversal. By default, the note that the codeblock is in will be used.

Example: start-note: folder/note.md

fields

fields?: string[]

Filter edges by a list of your edge fields. By default, all of your edge fields will be used.

Example: fields: [up, same]

field-groups

field-groups?: string[]

Similar to the fields property, but you can select multiple field groups instead of individual fields. By default, all fields (and therefore all groups) will be used.

Example: field-groups: [ups, downs]

merge-fields

merge-fields?: (true) | false

If false, each of the chosen fields is traversed separately. If merge-fields is set to true, all fields will be traversed together, meaning paths of edges with different fields will be shown together.

Example: merge-fields: true

TIP

Another way to think of this is that merge-fields: true will run a single traversal, where all fields are allowed in the path. Whereas merge-fields: false will run multiple traversals - one for each field.

Consider the following graph:

graph LR
    A -->|down| B
    B -->|child| C

Starting from node A, and merge-fields: false, the result would just be:

- B

Because A doesn’t have any child edges leaving it, so only the down traversal has results. But with merge-fields: true, the result would be:

- B
  - C

Because the down and child edges are traversed together - paths with either field are shown.

title

title?: string

Add a title above the codeblock.

Example: title: Breadcrumbs Codeblock

depth

depth?: [number] | [number, number]

Filter edges by a depth range. The min and max values are both inclusive.

Example:

• depth: [0, 3] - show all paths 3 levels deep and shallower
• depth: [1, 3] - show all paths between 1 and 3 levels deep
• depth: [3] - show all paths atleast 3 levels deep

By default, all depths are shown.

collapse

collapse?: true | (false)

If type: tree, and collapse: true, all nested lists will be collapsed/folded closed.

Example: collapse: true

flat

flat?: true | (false)

Flatten the tree results into a un-nested list.

Example: flat: true

from

from?: string

Scope the codeblock to a set of notes using a FROM-style query. The Dataview plugin is not required — Breadcrumbs parses the query natively (supports #tag, "folder", [[link]], and AND / OR / NOT). For type: markmap it sets the root notes; for other types it filters the traversal.

Example: from: '#tag and !"Folder"'

RENAMED

This field was previously called dataview-from. That name is now misleading — the Dataview dependency was removed, and Breadcrumbs parses the query itself. The old name still works as a deprecated alias and logs a console warning; switch to from.

show-attributes

show-attributes?: EdgeAttribute[]

Show specific edge attributes about each item in the result. By default, none are shown.

Example: show-attributes: [field, source]

sort

sort?: <field> (asc) | desc

Order the results using a given edge sorter.

Example: sort: basename, or sort: path desc, or sort: neighbour-field:next

mermaid-direction

mermaid-direction?: LR | RL | TB | BT

The direction of the mermaid graph (if type: mermaid). Meaning:

• LR: Left-to-right
• RL: Right-to-left
• TB: Top-to-bottom
• BT: Bottom-to-top

Example: mermaid-direction: TB

mermaid-renderer

mermaid-renderer?: (dagre) | elk

The renderer to use for the mermaid graph.

• dagre is the default, and is more stable.
• elk is more experimental, but can handle larger graphs.

Example: mermaid-renderer: elk

mermaid-curve

mermaid-curve?:
  | (basis)
  | bumpX
  | bumpY
  | cardinal
  | catmullRom
  | linear
  | monotoneX
  | monotoneY
  | natural
  | step
  | stepAfter
  | stepBefore

The curve style to use for the mermaid graph.

Example: mermaid-curve: natural

mermaid-arrow

mermaid-arrow?: true | (false)

Controls whether bidirectional edges in the mermaid graph are rendered with arrowheads on both ends. Only applies when type: mermaid.

By default (false), edges that run in both directions between two notes are drawn as plain lines — either solid (---) or dashed (-.-) depending on whether the edges are explicit or implied. No arrowheads appear on either end, which keeps the diagram cleaner when reciprocal relationships are already understood.

When set to true, those same bidirectional edges gain arrowheads on both ends (<---> for explicit, <.-> for implied), making the two-way nature of the relationship explicit in the diagram.

One-directional edges are unaffected — they always render as --> (explicit) or -.-> (implied) regardless of this setting.

EXAMPLE

Suppose your vault has a parent/child implied-relation pair, so an explicit up edge from 2024-01-15 to January 2024 also generates an implied down edge back. In the mermaid graph:

• mermaid-arrow: false — the two notes are connected by a plain line (-.-) with no arrowheads, since the relationship is bidirectional and implied.
• mermaid-arrow: true — the connector becomes <.->, showing arrowheads on both ends so the direction of each relationship is visible.

TIP

Use mermaid-arrow: true when sharing a graph with someone unfamiliar with your vault structure, or when the direction of implied edges matters for understanding (e.g., a reports-to hierarchy where both the explicit and implied edges carry meaning).

Example: mermaid-arrow: true

PER-FIELD OVERRIDE

Individual edge fields can also be assigned a fixed arrow shape in Settings → Edge Fields. A per-field shape takes priority over the default logic for that field’s edges, regardless of this mermaid-arrow setting. See Edge Fields → Mermaid Arrow Style.

Examples

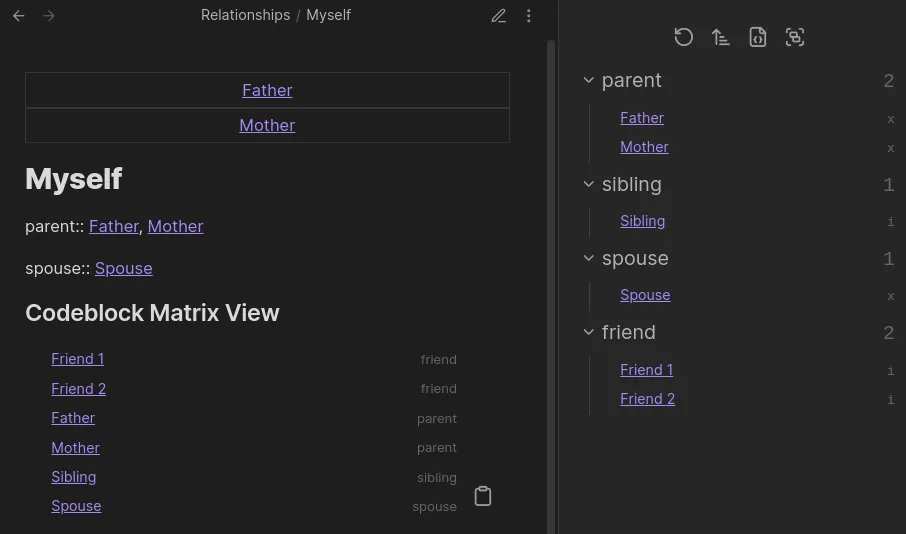

Simulate the Matrix View

You can show similar results to the Matrix View using the following codeblock:

type: tree
# Only show the top-level edges
depth: [0, 0]
# Show the `field` attribute next to each edge item
show-attributes: [field]
# Sort the results by their field name, effectively "grouping" by field
sort: field
